Product introduction
Ultrasonic level meter (measuring liquid level and material level) is a non-contact level measuring instrument with high reliability, high cost performance and easy installation and maintenance. It is an ideal low-cost measuring equipment for measuring liquid, slurry and solid in industrial field. The product implementation standard: GB/T 11828.4-2011, GB/T 27993-2011
|
|
Product advantage
Non-contact medium measurement, not affected by the viscosity of the measured medium, specific gravity, strong anti-interference;
Choose environmentally friendly materials, do not pollute the measured medium;
Non-toxic, can be used for drug, food industry measurement;
With relay contact output to achieve level alarm function;
Panel button setting parameters, user parameter setting is convenient and fast;
Using microprocessor and special echo processing technology, it can adapt to a variety of complex conditions of level and liquid level measurement;
With self-learning function, can identify the true echo, the measurement result is accurate;
With automatic temperature compensation, it can inhibit drift and improve measurement accuracy.
Protection class IP67, can be used in most outdoor conditions.

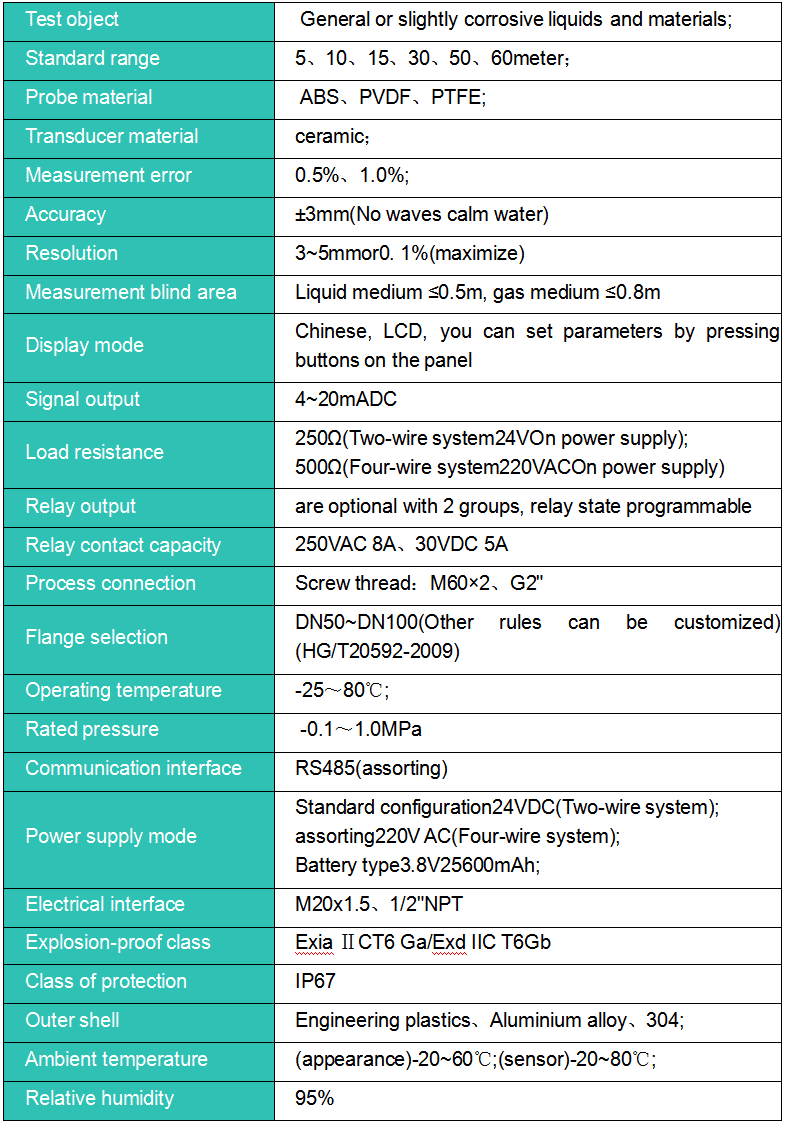

Technical parameter
Main use
Widely used in water treatment, municipal, chemical, metallurgy, mechanical manufacturing industry level or liquid level measurement.
Ultrasonic level meter is divided into two types: one type and two type. Integrated sensor, host together, easy to install; Split type is to separate the sensor from the host, which is more suitable for installation on storage tanks, silos and supports.
