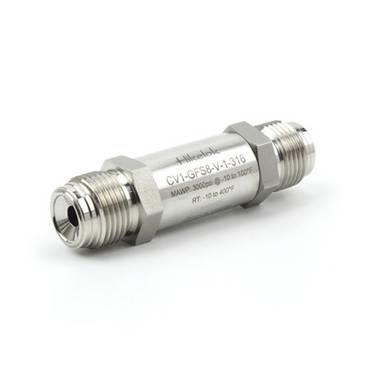

Product introduction
CV1 check valves have been widely accepted and used in various industries for many years. A wide range of terminators are available for all types of installations. NACE compliant materials and oxygen cleanings are also available, along with an extensive list of structural materials. Operating pressures up to 3000 psig (206 bar) and operating temperatures from -10°F to 400°F (-23°C to 204°C). Each check valve is tested at the factory for cracking and resealing performance with a liquid leak detector. Each check valve is cycled six times before testing. Each valve is tested to ensure that it seals within 5 seconds at the appropriate reseal pressure.
|
|
Product characteristics
Maximum working pressure: 3000 psig (206 bar)
Operating temperature: -10°F to 400°F (-23°C to 204°C)
Opening pressure: 1/3 to 25 psig (0.02 to 1.7 bar)
Fixed opening pressure
Provides a variety of termination methods
A variety of body materials are available
A variety of sealing materials are availabl
Product advantage
O-ring seal half body
Fixed opening pressure
Provides a variety of termination methods
A variety of body materials are available
A variety of sealing materials are available
100% Factory test
More choices
Optional fluorocarbon FKM, nitrile rubber, ethylene propylene rubber, neoprene rubber, Carres sealing material
Optional opening pressure: 1 psig, 1/3 psig, 3 psig, 10 psig, 25 psig
Optional SS316, SS316L, SS304, SS304L, brass body material
