Brief introduction of advantages
A full line of guided wave and free-space radars for solid and fluid applications offers advanced measurement technology combined with a rugged design to ensure lifecycle reliability. The device's features include a unique 360-degree rotation that supports side or top mounting, making it easier to install into existing Spaces. All radar meters are equipped with user-friendly external displays that provide a simple and intuitive configuration for easy use by new operators. To ensure safety, equipment safety options include SIL2 certification, dual seal technology with Metaglas, remote displays that prevent personnel from climbing the tank, and detachable electronics to ensure an accessible antenna installation.
Advantages of guided wave radar

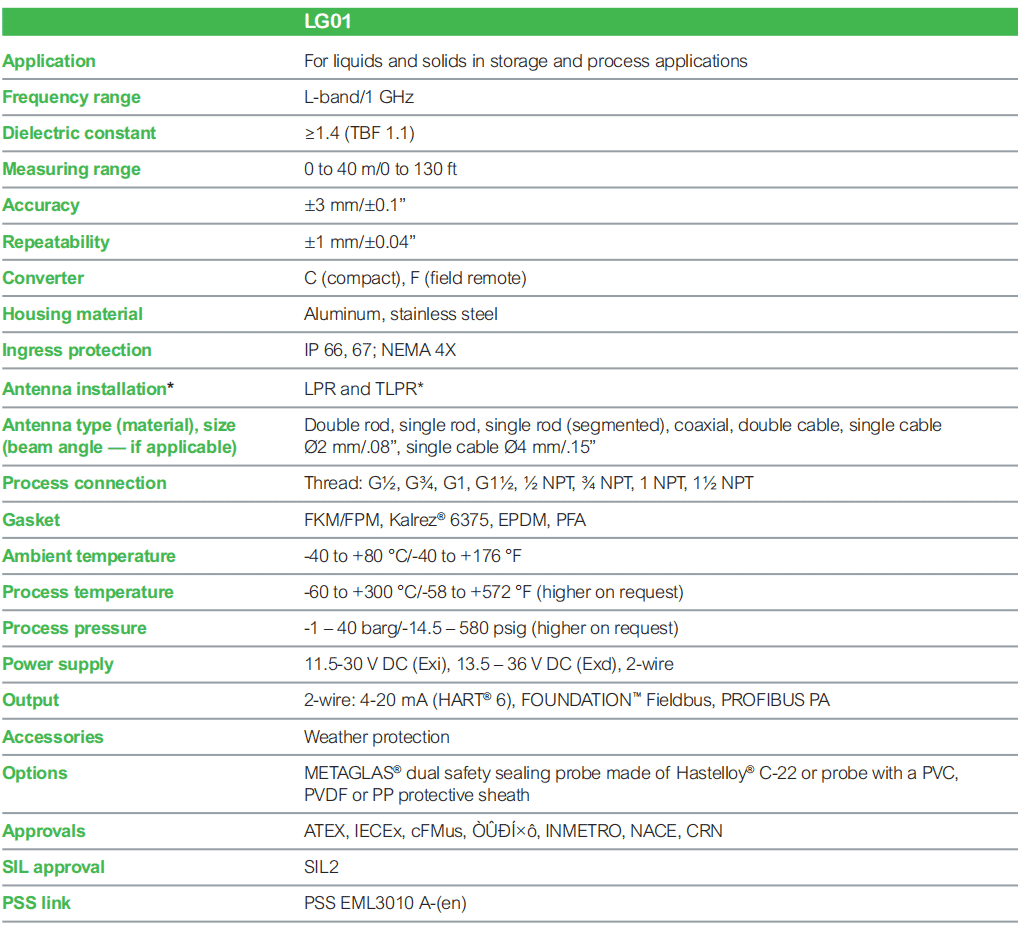

The LG01 guided wave radar transmitter is designed to be a highly reliable radar style. Its never-lost signal enables continuous level measurement in a wide range of industries and applications. The modular design of the housing and sensors ensures that this radar transmitter is suitable for a variety of mounting positions and applications. This is a universal measuring device for fluids and solids.
Free space radar advantages
The full range of frequency-modulated continuous wave (FMCW) free-space radars combines advanced technology and algorithms to ensure easy setup and reliable, accurate, repeatable operation. Compared to pulse radar, FMCW technology provides greater reliability through more than 100 times higher signals.

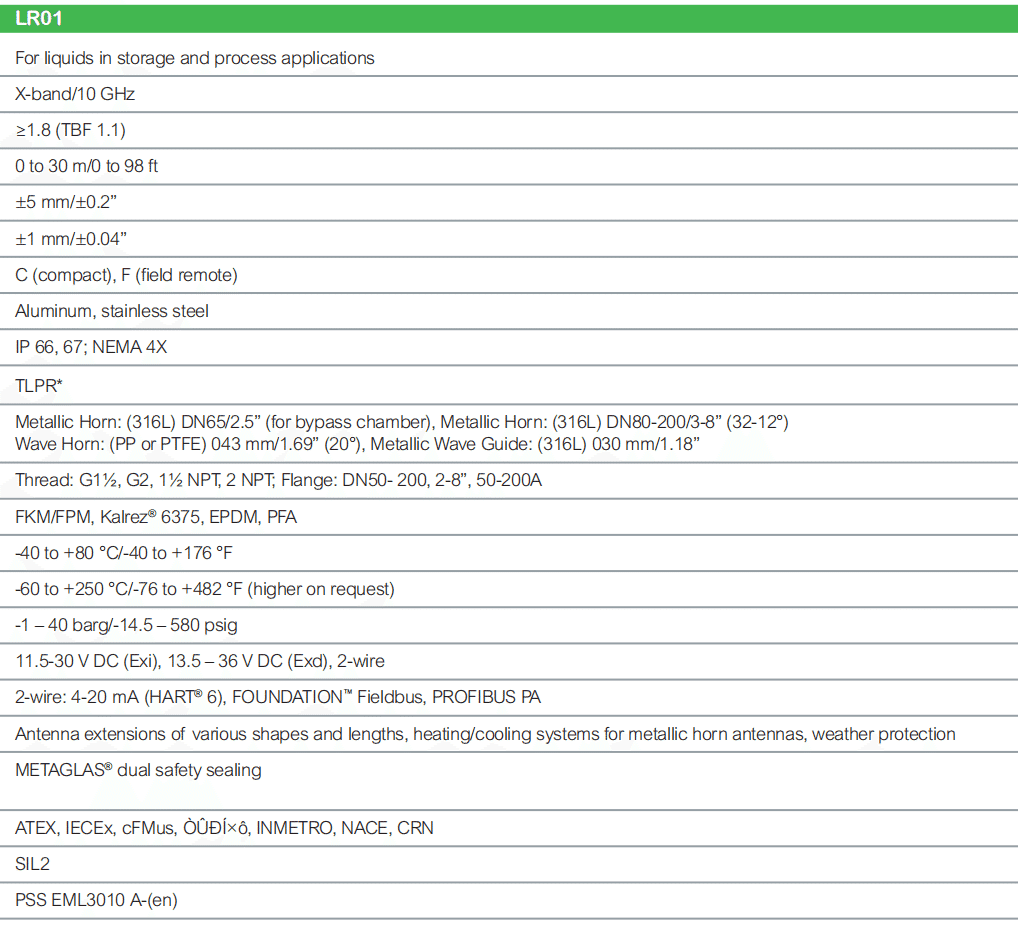

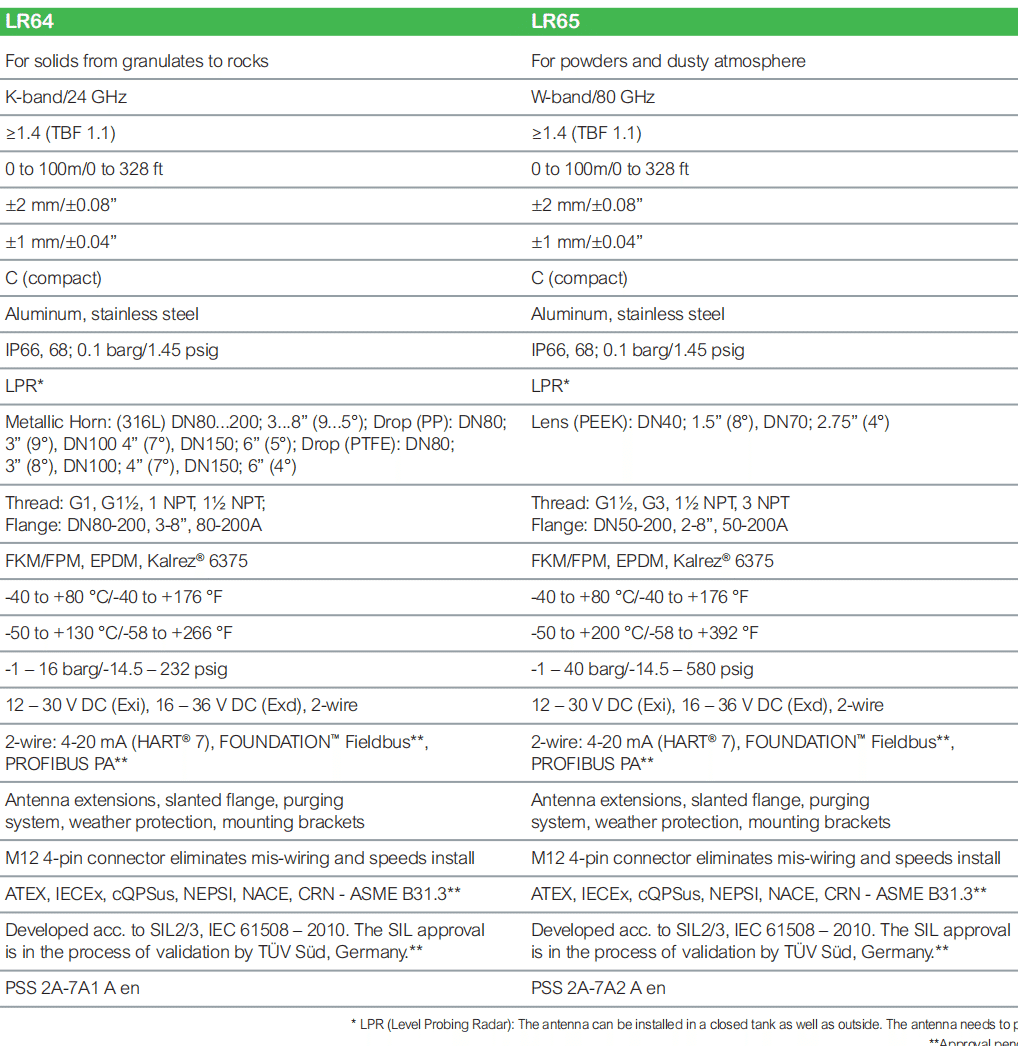

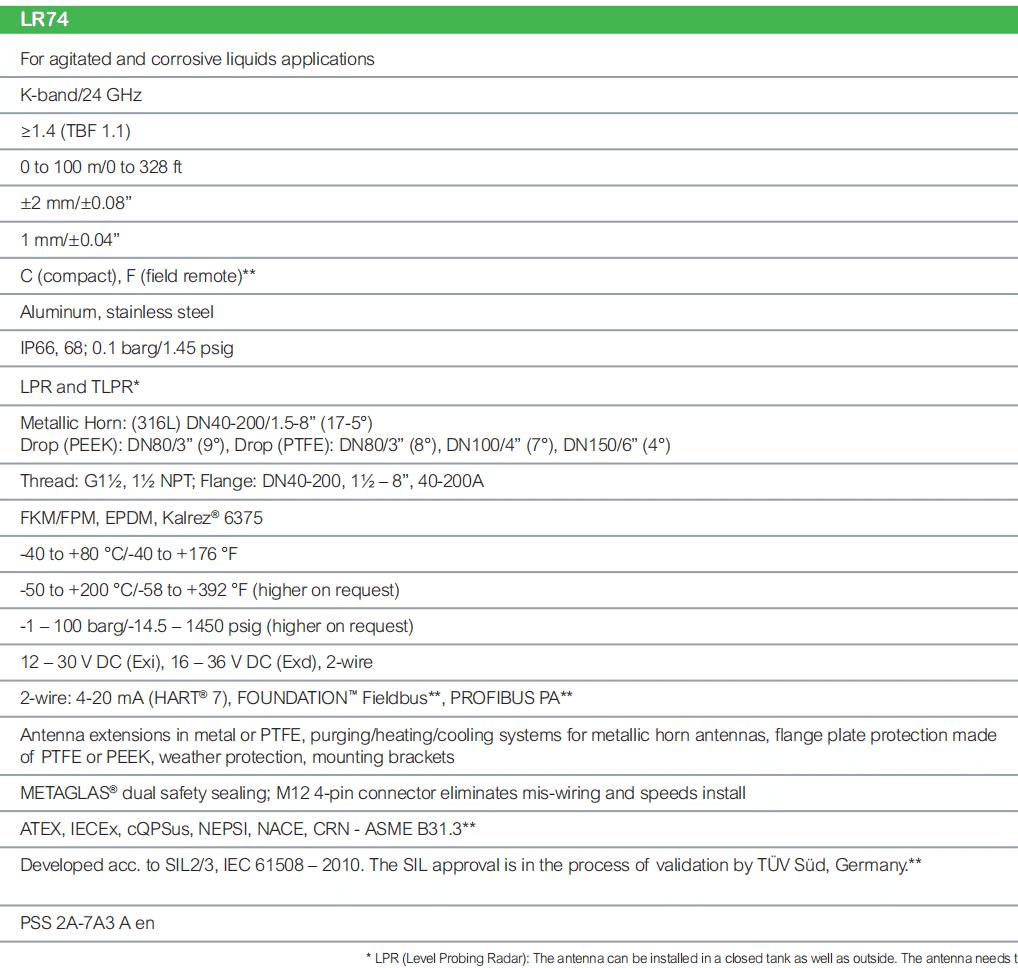

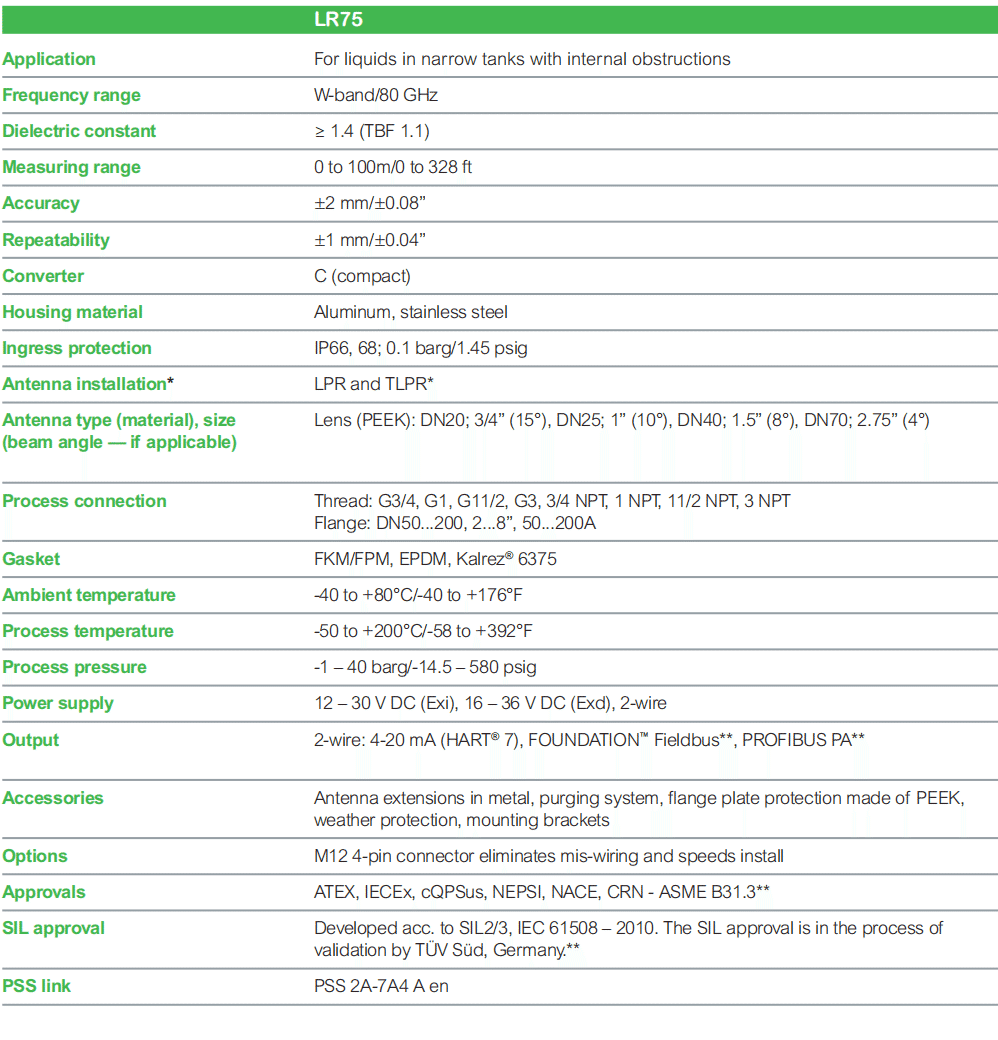

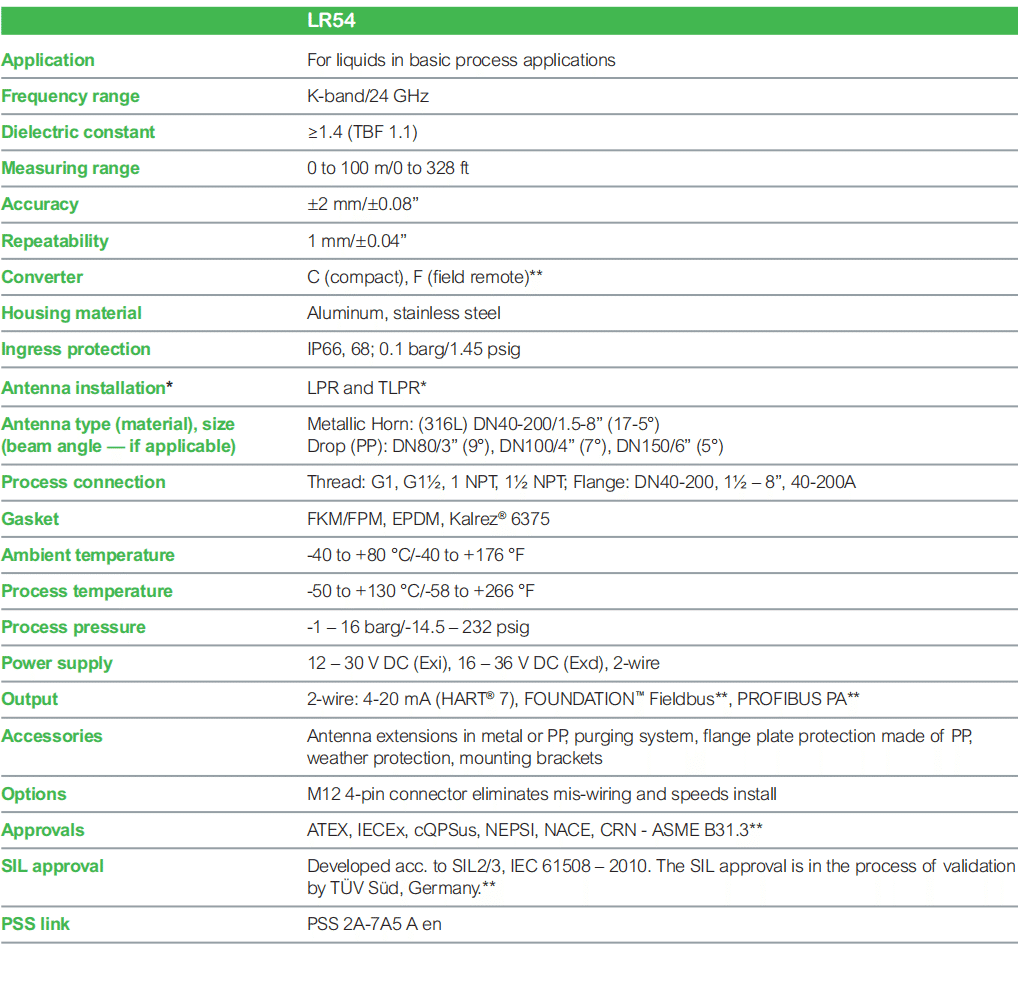

Whether your application is challenged by thick dust, deposits or corrosive materials, Schneider Electric's full range of products can provide level measurements with accuracy of ±2 mm/±0.08 "and ranges of up to 100 m/328 ft. The LR75 and LR65 80 Ghz radar technologies feature a small radar beam for the most complex and difficult applications, including nozzles and top isolation valves. With the ability to measure extremely low dielectric constant materials and avoid obstacles affecting the signal, the above techniques can be used in a variety of applications. The LR54, LR74 and LR64 are equipped with the popular 24 GHz radar for versatility and reliability, using an optional drop antenna to avoid accumulation and condensation problems. The 10GHz LR01 has an impressive track record in turbulent, steam and challenging foam applications. Based on their design, all radars are easy to set up and can be used to measure fluids, pastes, solids, powders and slurries in all process industries.

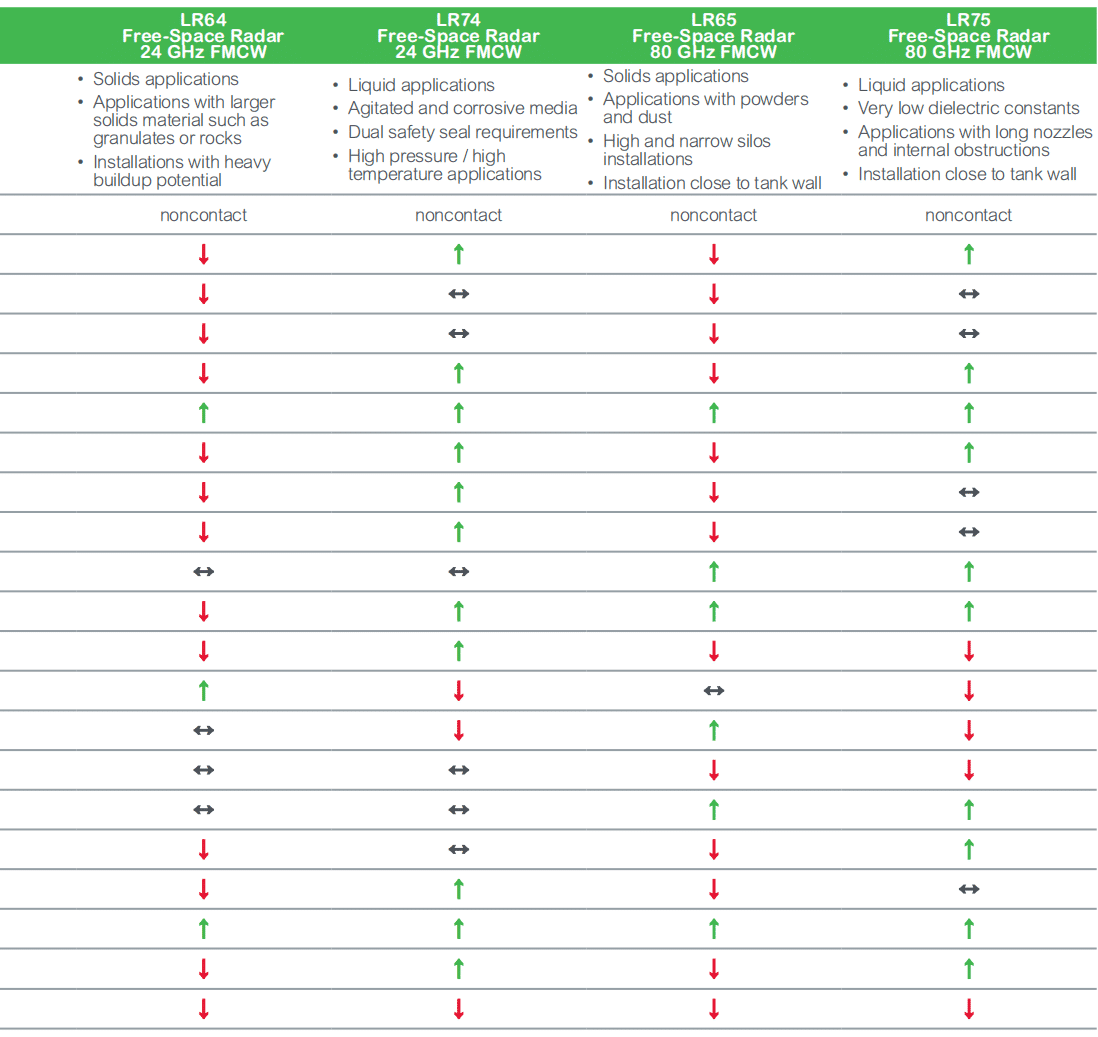

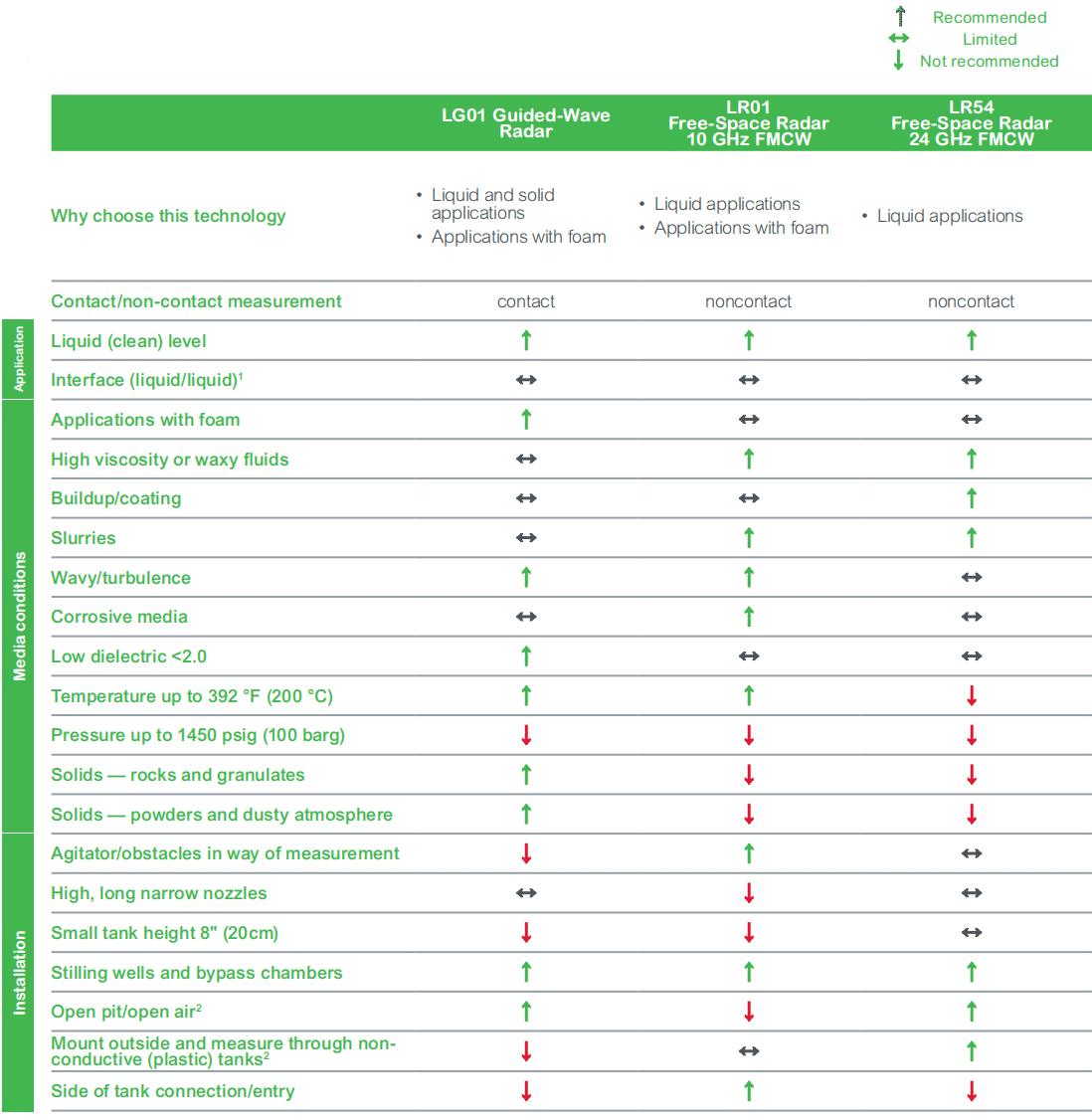

Selection guide
Radar level instrument
Radar
 |  |
