Brief introduction of advantages
Flexible solution for most traffic
Electromagnetic flowmeters are designed for a wide range of applications in various industries, including water, grout, chemicals, pharmaceuticals and food. Schneider Electric Electromagnetic flowmeters are a reliable flow metering solution with low use and maintenance costs and field-proven stability that maximizes flow metering availability.
For most applications, Schneider Electric electromagnetic flowmeters with DC excitation are the ideal solution.
Our transmitters have ideal functions such as automatic/manual ATC detection, bidirectional measurement, discrete inputs for remote operation, and relay outputs for alarm functions. You'll also get flexible configuration to match your control scheme, easy configuration, and a durable modular construction.
In addition, our flow meters provide continuous diagnostic and self-test capabilities to identify coating and corrosion of electrodes or changes in flow profile. The unique new feature "Virtual reference grounding" eliminates the need for grounding electrodes or rings, simplifying and reducing installation costs while eliminating the risk of accuracy due to unstable ground in the field.
Our flow tubes are available in a variety of sizes (0.1"t to 80", 3 mm to 2,000 mm) with a wide range of industrial and sanitary grade options.
These flow tubes can be used for most conductive fluids, including difficult-to-handle fluids and slurries. The enhanced PFA gaskets can even withstand dramatic process temperature fluctuations (up to 180 ° C /356 ° F) and process pressures from full vacuum to 40bar(580psi).
You'll also get a wide variety of installation options, pipe sizes, and configurations.
Breakthrough technology for your toughest traffic problems
From the process industry's first electromagnetic flow system in 1954 to the DC pulse electromagnetic transmitter in 1983, Schneider Electric has a wealth of flow expertise. Today, we're building better traffic solutions for the future.
The IMT33A transmitter suppresses noise and improves performance in the harshest flow applications such as slurry, cement or pulp paper.
This results in clear, accurate and reliable measurements where solids or additives produce unacceptably high process signal noise including chemical additives, slurries, high concentrations or pulsating flows.
Flow solutions from Schneider Electric provide online intelligent diagnostics and assistance; Simple menu driven software configuration; Compatible with most Schneider Electric solenoid tubes; High precision and fast response; And durability and ease of use.

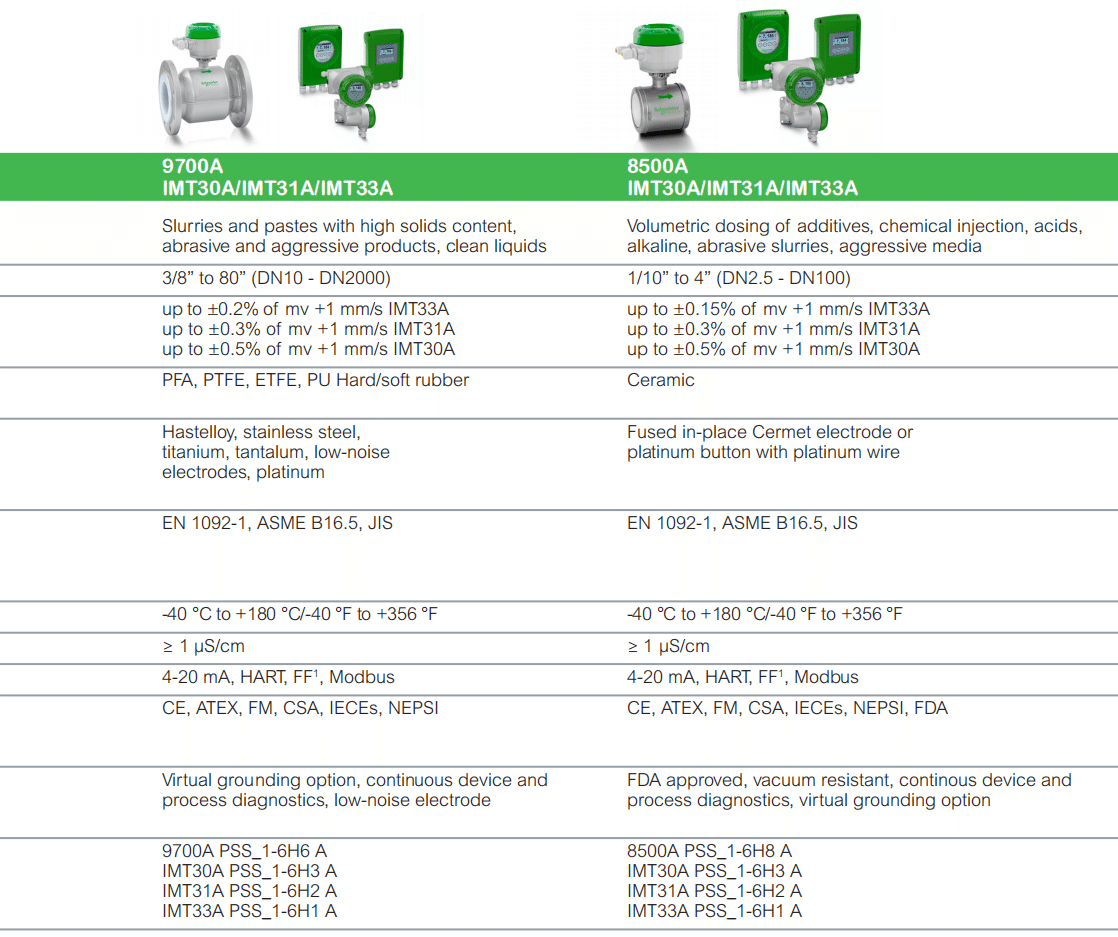

Selection guide
